KRC Alien NANO Black Anodized Chassis Kit for SCX24 - Limited Run #3

KRC Alien NANO Anodized Black Aluminum Chassis Kit for SCX24 builds- NEW

3rd run of the limited edition "shorty" chassis designed for custom shorter builds.  This chassis utilizes the trusted design of the Alien chassis, but with a revised smaller footprint, smaller and shortened shock mounting areas,  8 degree center section angle and increased overall clearances/part adjustability for those looking for other chassis sizes for unique builds and such.

Chassis length when assembled -108mm or 4.25" overall

Chassis weight when assembled - 17-30 grams (depending on parts used.)

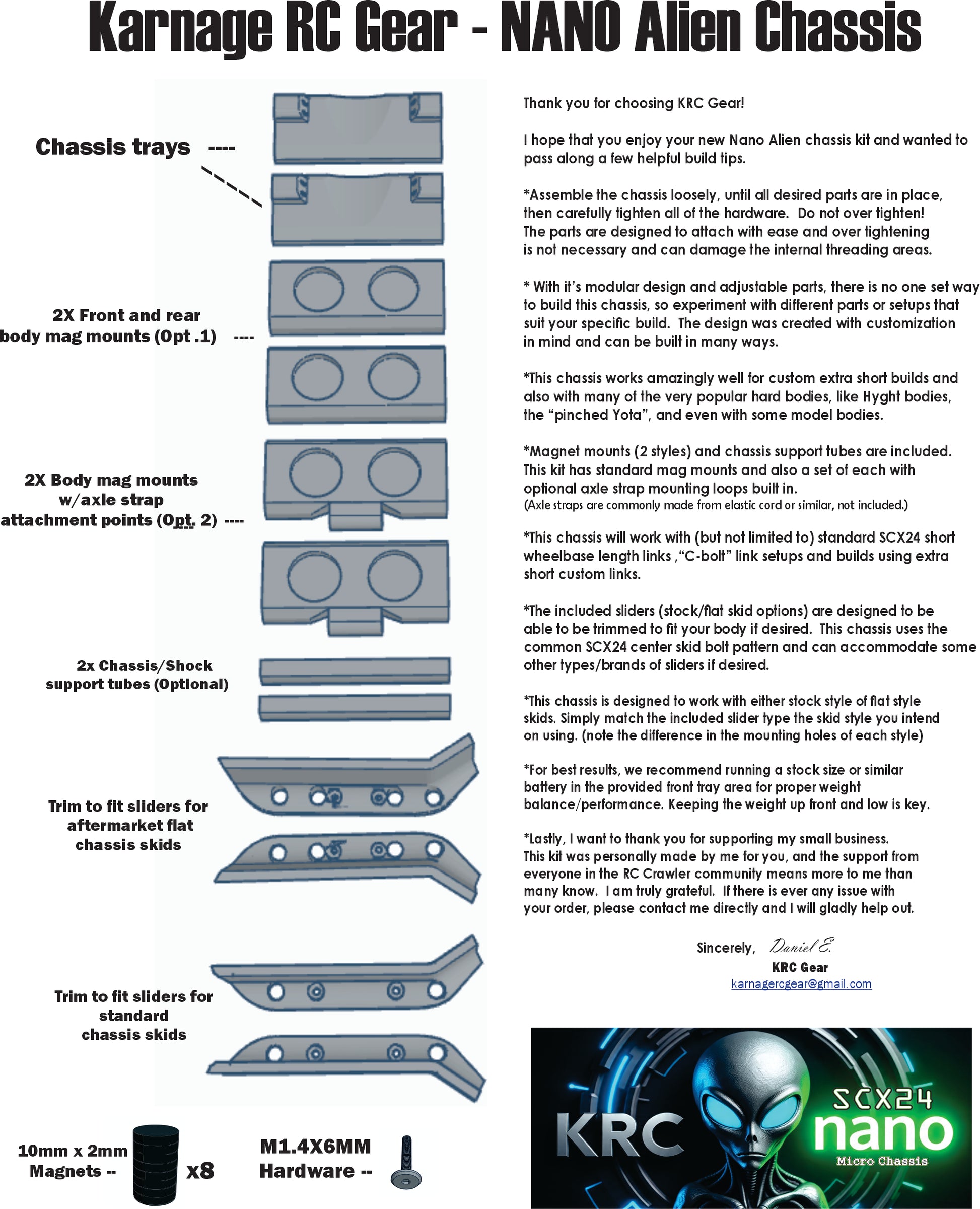

This chassis is considered "short wheelbase" in the scx24 world and works well with (but not limited to) common short wheelbase setups.  The smaller footprint of this chassis allows for more laid back shock angles, lower stances, great flex and is a prime choice for clean, ultra lightweight and minimalistic builds.  See part list pic for all included parts. (last pic)

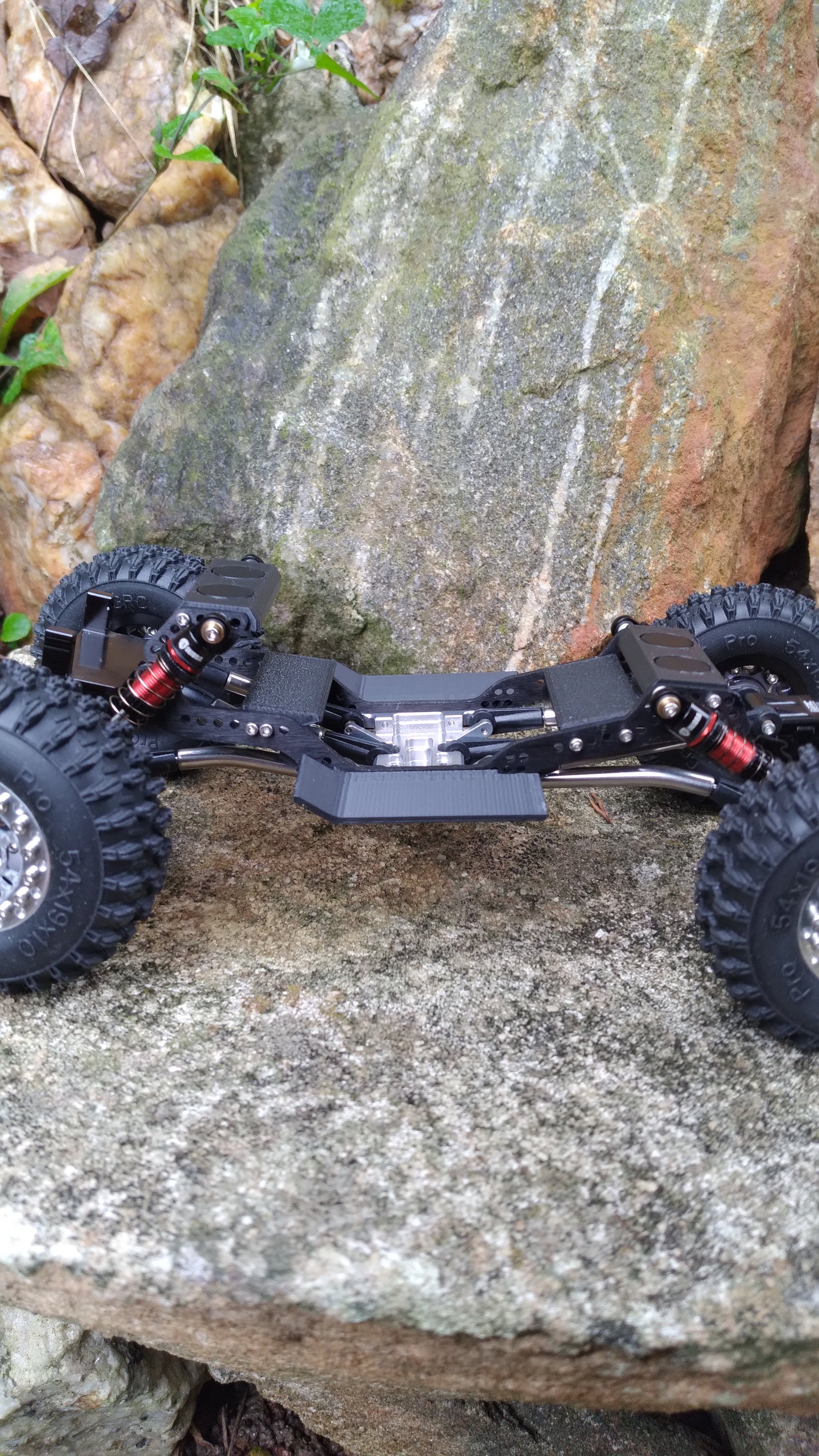

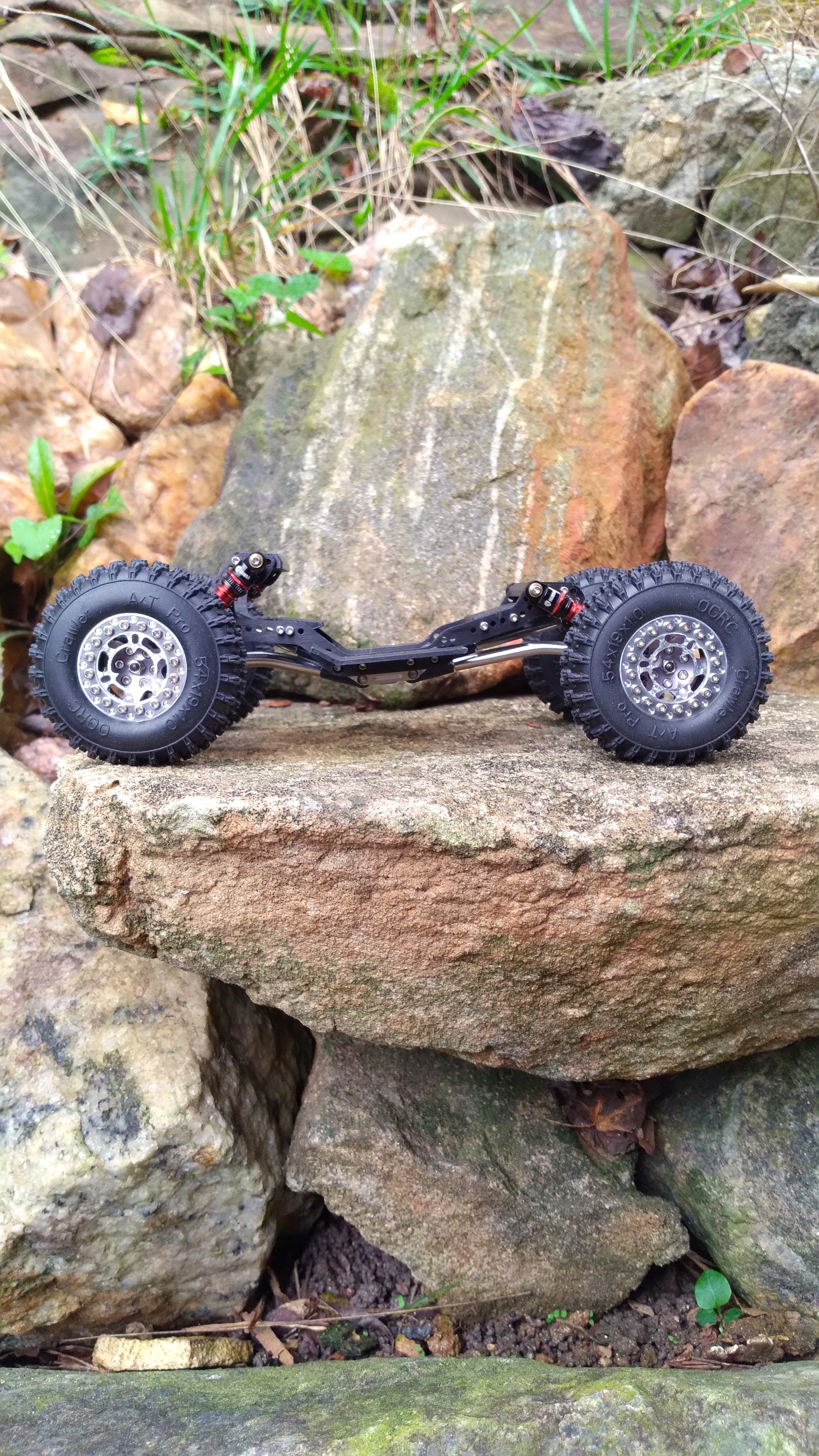

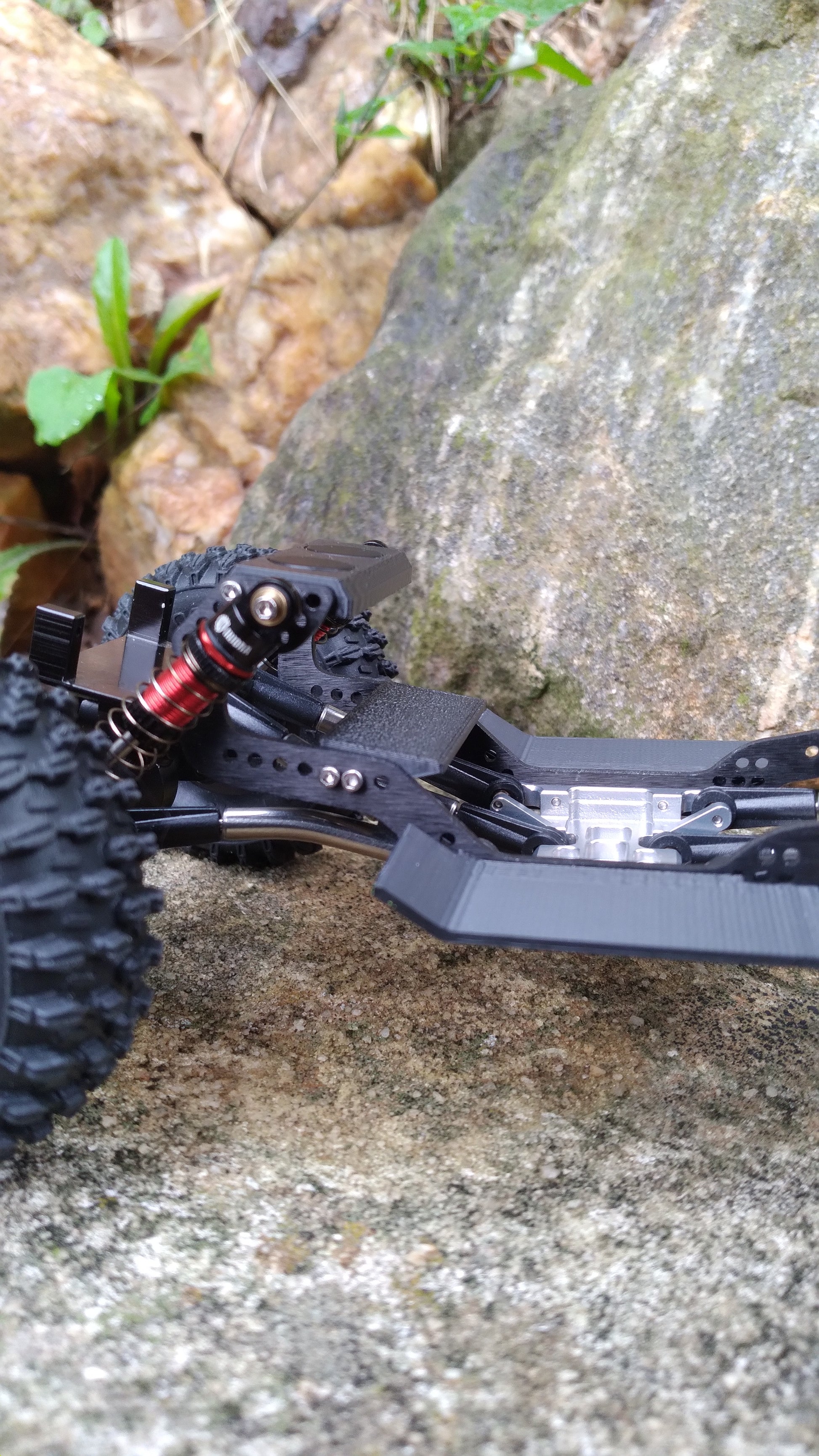

(Includes 1 chassis kit only, the built roller is shown as an example for build reference only and other parts like center skid, wheels, tires, shocks, axles etc. are NOT included. )

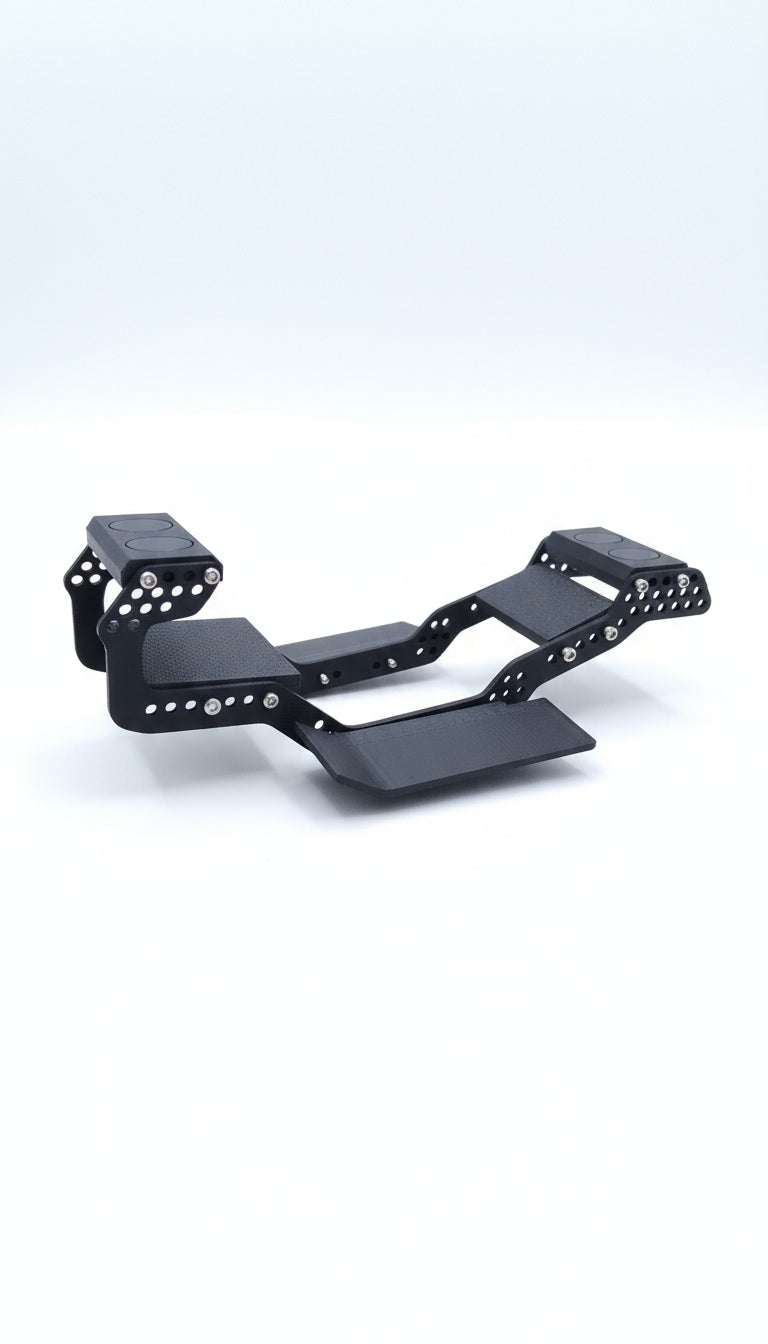

   Includes all chassis related parts needed in order to accommodate your specific build. The design also has increased break-over clearance that matches well with high clearance/double bend links. The shown chassis is assembled in a common manner but is designed to be built however needed, using the included adjustable trays/mounts.  The Alien Nano frame sets are designed for custom builds and are not made specifically for any particular bodies but should work well with most any commonly available 24 scale options and custom 3d printed bodies.  (Works well with 3d printed truck bodies, like the common "pinched Yota", etc.)  Uses either stock style of flat center skids. (not included)  "Trim to fit" Sliders for both types of skids are included in this kit.  As for links, double bend links typically offer the best performance and clearance.)

    Respectfully, previous SCX24 building experience is recommended with our unique products like this. Will ship as quickly as possible with provided tracking and prompt handling. Due to the nature of this hobby, we cannot accept returns/cancellations on our custom made items once shipped out.

*Minor product improvements/details like colors of hardware and overall part designs subject to change without notice.

*This kit contains small items and is not designed for children/may be a choking hazard.
