Karnage RC Gear ALIEN V3.1 REISSUE- SCX24 Chassis Builder's Kit - UV Neon Green - Choose your wheelbase length

KRC Alien V3.1 Reissue Chassis Kits - SCX24- Transparent UV Neon Yellow/Green - (glows in blacklight) Choose from your choice of wheelbase length. (Long matches, but not limited to, the Gladiator/Power Wagon/Betty length and the short is designed for the C-10/ Jeep Wrangler/Bronco/Deadbolt.

The revised 3.1 edition omits the original V3's extra link holes for added rail strength. The acrylic V3 was originally discontinued for the aluminum version, so small random runs are being offered only due to a high volume of frequent requests. (Listing images show original design with multiple link mounting holes.  These have been omitted on the 3.1 design meaning that you will receive rails with standard center skid/link mounting holes only) All sales final on acrylic chassis kits.

Chassis Info -

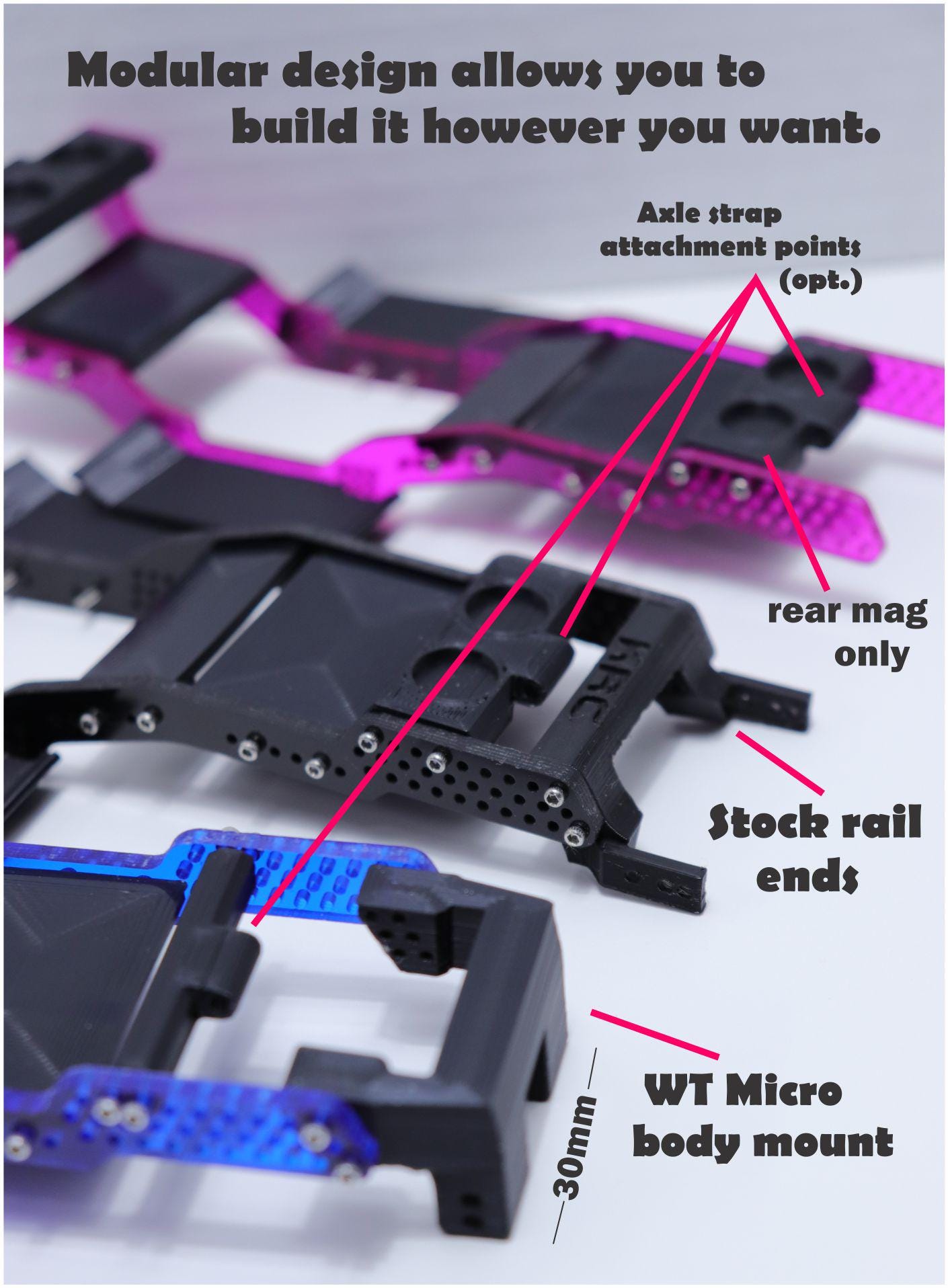

     Features a modular design made to allow for unique custom builds, letting your creativity run wild. Each has tons of extra mounting holes and multiple component trays that feature offset/reversible mounting points for detailed clearance tuning and numerous configuration options. Has a snub nose clipped front for full servo clearance and a slightly angled center section. (5-6 degrees) Also has snubbed rear rails and includes an attachment that adds in optional stock rear rails. (for stock bumper/hinge mounting) The V3 also includes an optional mount designed for select WT_Micro bodies. (WT bodies with rear hinge tabs that have an internal spacing of 30mm)

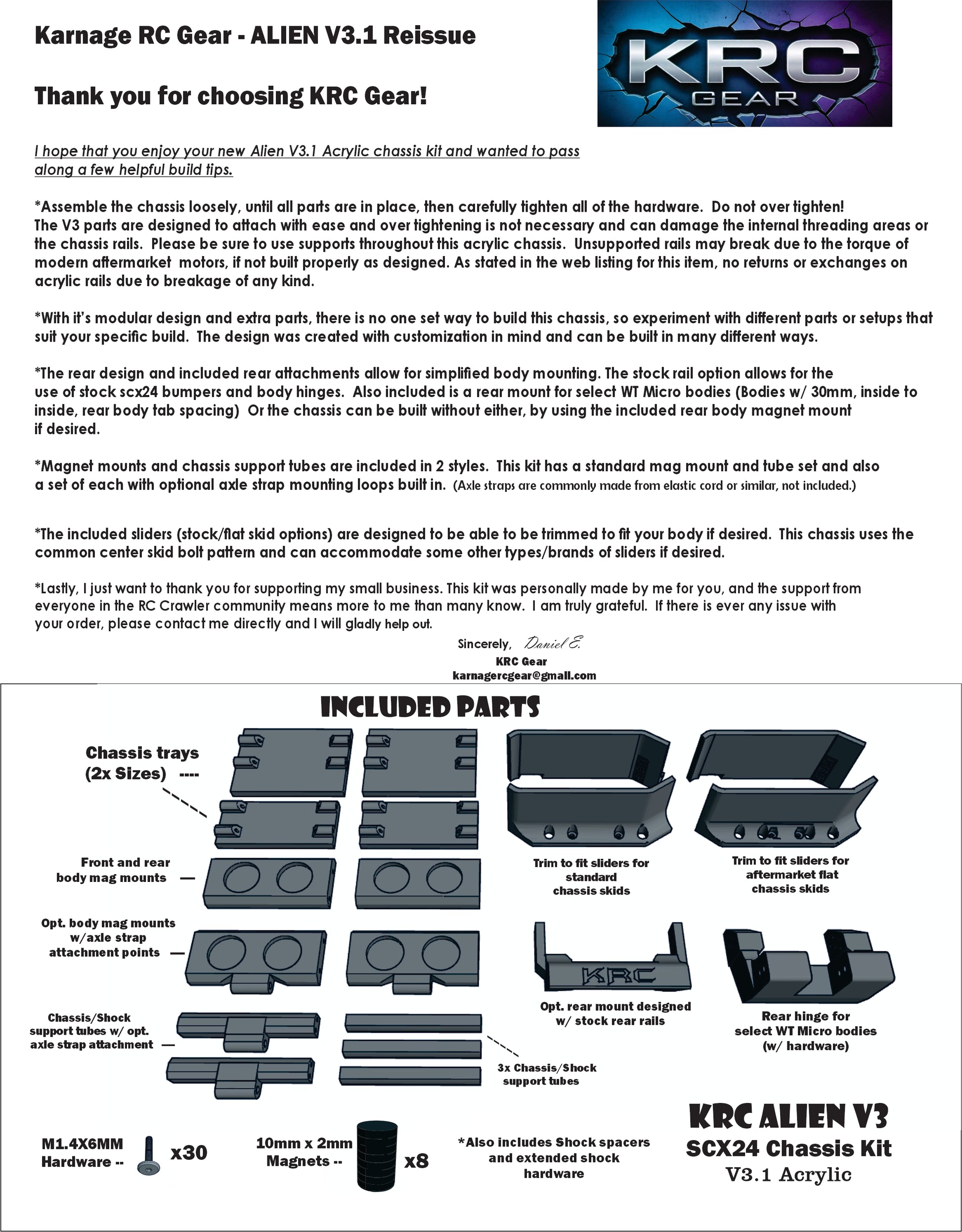

     Includes beefed up rails and more parts than needed and can be built many, many different ways, in order to accommodate your specific build. The V3 design also has increased break-over clearance that matches well with high clearance/double bend links. The shown chassis are assembled in a common manner, using only a few of the included parts, but are designed to be built however you want. This is one of, if not the most modular and easy to build kits available for the SCX24 platform. The Alien V3 frame sets are designed for custom builds and are not made specifically for any particular bodies but should work well with most any commonly available 24 scale options and custom 3d printed bodies.  SEE ATTACHED PIC FOR A DETAILED LIST/EXPLANATION OF ALL INCLUDED PARTS.

     Please note, these are CNC machined in house with high quality cast acrylic. There may be machining marks along the rail edges from this process, as our design is too intricate for common laser cutting. Each is slowly and carefully made, one at a time, by myself personally. This material is slightly thicker (.115") than most common frame materials on the market. Stainless steel shock spacers are included as an optional addition, to help dial in shock clearance/spacing. This chassis is very strong when assembled and performs just as well as it looks. (Please use the proper included chassis supports throughout to ensure the the chassis is supported as designed.)   All other included parts are 3d printed in house. Works very well with either stock style of flat center skids and all link types. (flat skid and double bend links offer the best performance and clearance.) This is being sold as a builder's kit for those looking to add a little flair to their collection, in that unique KRC style.

     Respectfully, previous SCX24 building experience is recommended with our unique products like this. Will ship as quickly as possible with provided tracking and prompt handling.  We cannot accept returns/cancellations on our custom made items once shipped out.  Due to the nature of this hobby there are NO RETURNS OR EXCHANGES ON ACRYLIC RAIL KITS.  All sales are final.  This kit contains small items and is not designed for children/may be a choking hazard.
